DJI RS 5 Handheld Gimbal Stabiliser
Product Overview
- International stock, 1-2 days fast dispatch.
- Estimated Delivery Time Frame: 5-7 Business days
- One Year Australian Seller Warranty.

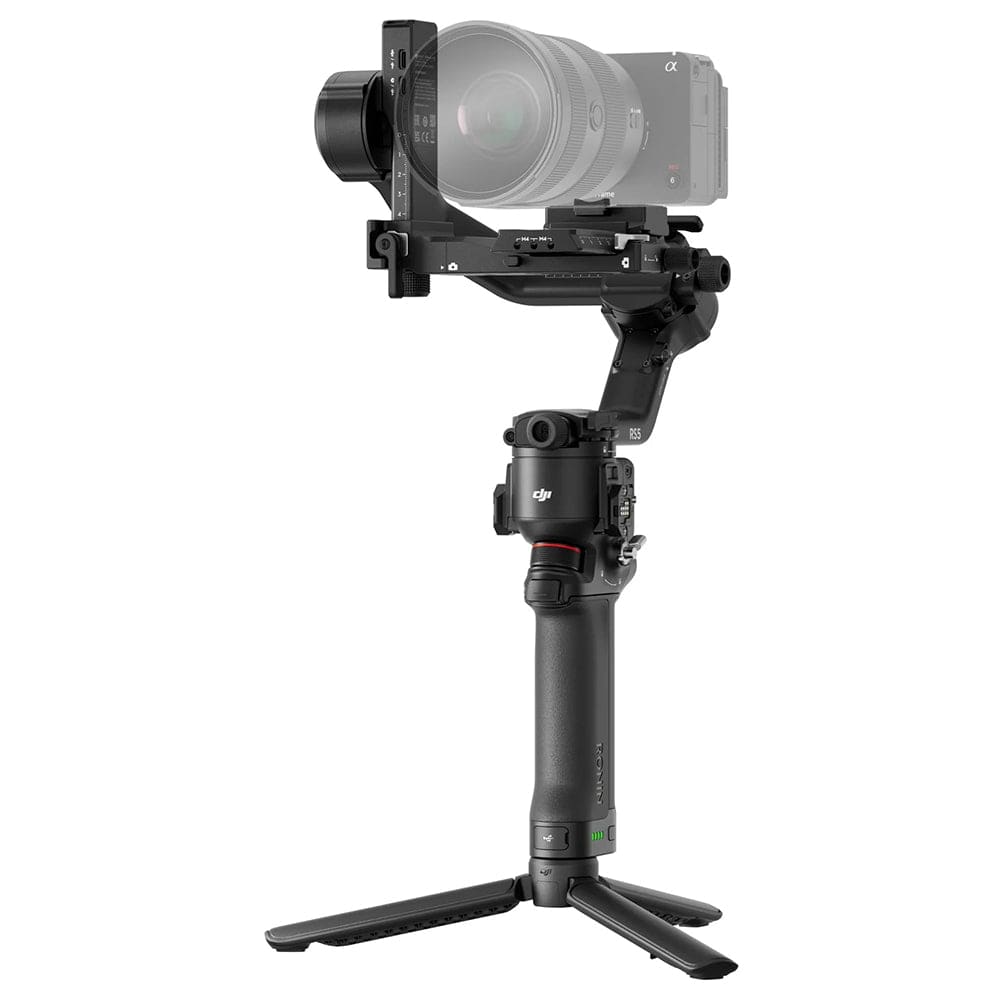

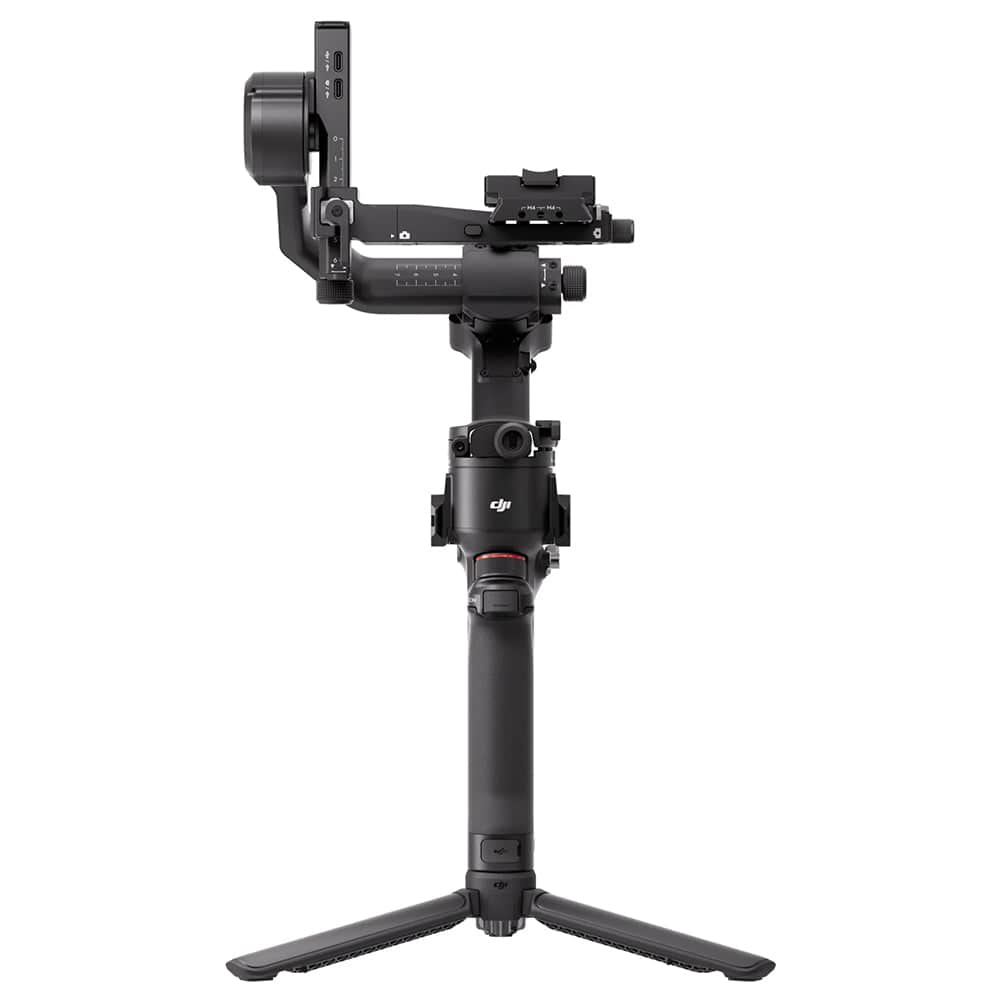

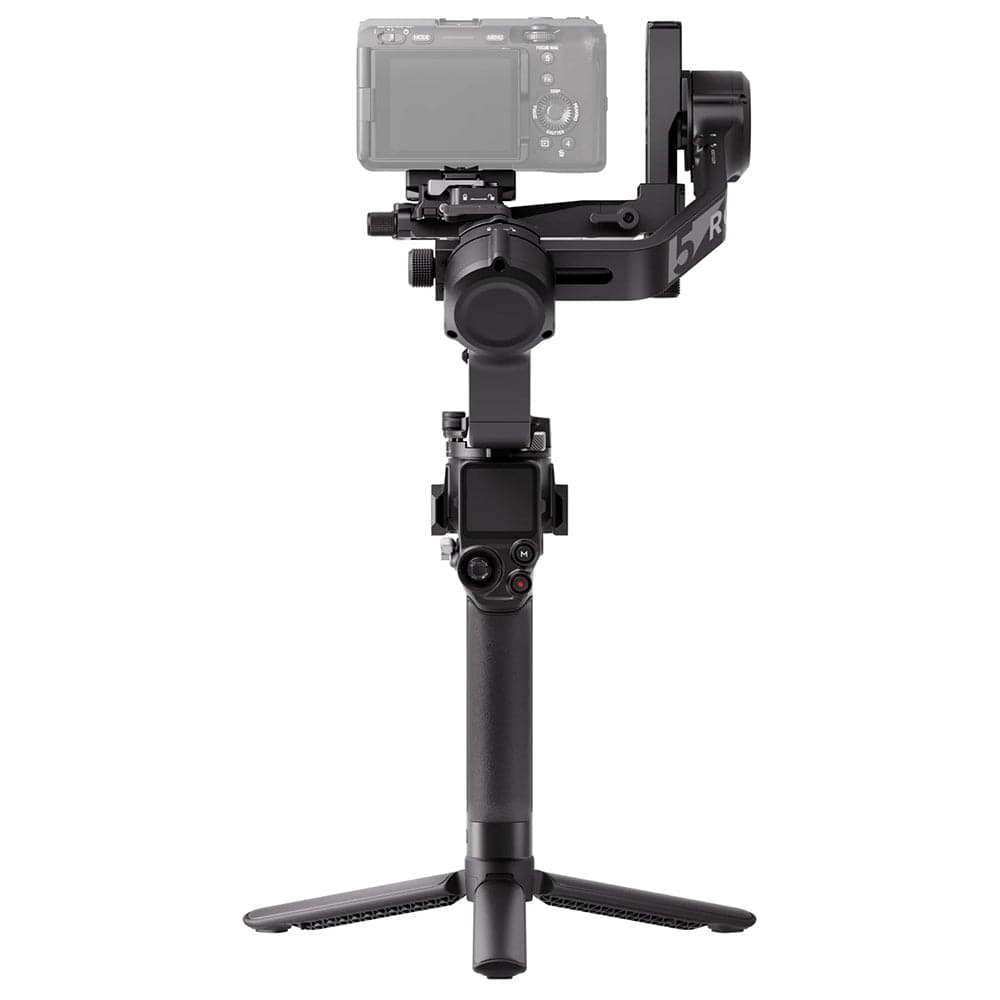

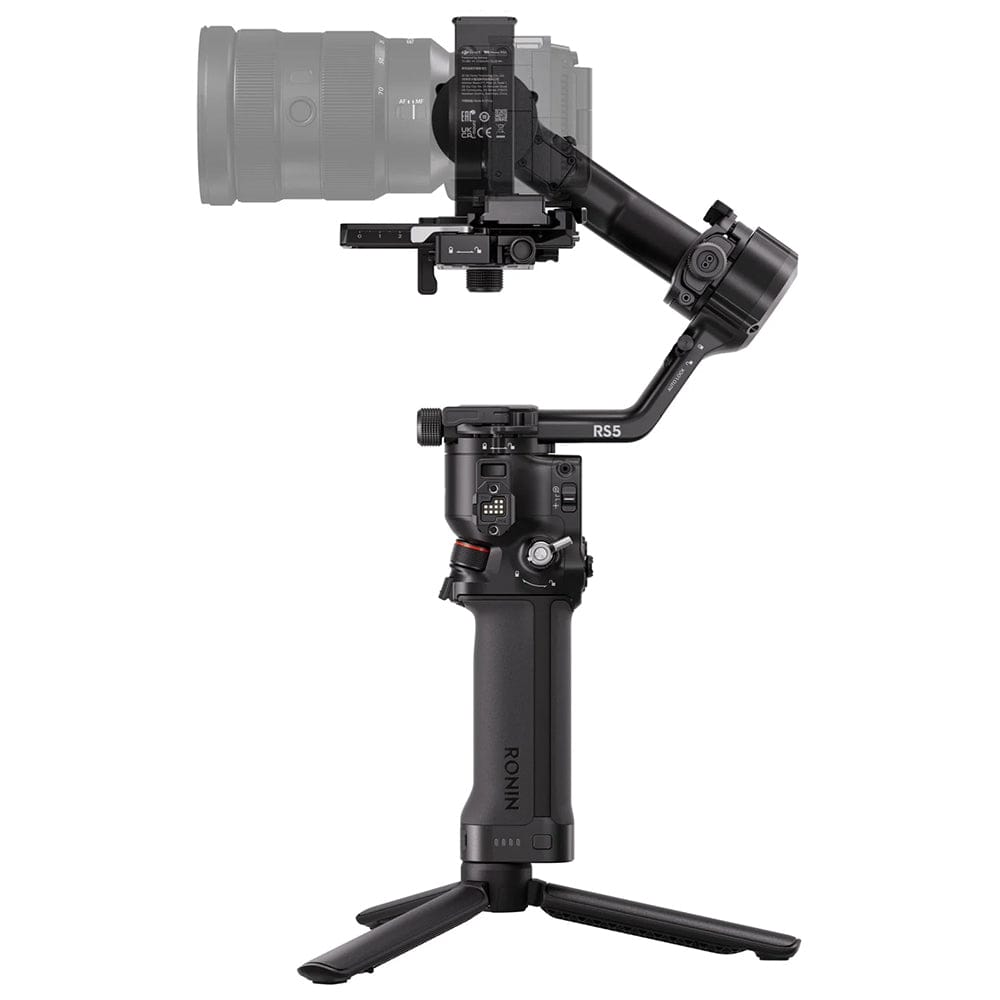

The DJI RS 5 Handheld Gimbal Stabiliser is a professional-grade 3-axis gimbal designed for filmmakers and content creators who demand precision, power, and flexibility. Built to support payloads up to 3.0 kg, it handles a wide range of mirrorless and cinema cameras with ease. The gimbal features a 360 degree continuous pan rotation and expansive tilt and roll ranges, allowing for dynamic, cinematic shots in any shooting scenario. Equipped with a high-capacity 2150 mAh LiPo battery, the RS 5 delivers up to 14 hours of standby time and charges fully in just 1 hour, keeping you ready for extended shoots without interruption.
The RS 5 Handheld Gimbal seamless setup and operation. Bluetooth 5.0 connectivity enables wireless control via the DJI Ronin App, compatible with both iOS and Android devices. The intuitive touchscreen interface supports multiple languages and provides quick access to shooting modes, settings, and tracking features. With its compact folded dimensions, lightweight build, and auto axis lock, the DJI RS 5 is engineered for portability without compromising on professional performance. Whether you are shooting documentaries, commercials, or cinematic content, this gimbal delivers smooth, stable footage every time.
Product Specification
| Working Performance | |
|---|---|
| Tested Payload | 3.0 kg (6.6 lbs) |
| Maximum Controlled Rotation Speed | Pan: 360 deg/s | Tilt: 360 deg/s | Roll: 360 deg/s |
| Mechanical Range | Pan: 360 deg continuous | Roll: -95 deg to +240 deg | Tilt: -112 deg to +214 deg |
| Axis Lock | Auto |
| Vertical Shooting | Supported |
| Battery | |
| Model | BHX715-2150-15.48 |
| Type | LiPo 4S |
| Capacity | 2150 mAh |
| Energy | 33.29 Wh |
| Voltage | 11.2 V to 17.8 V |
| USB Input | 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/3 A |
| Max Standby Time | Approx. 14 hours |
| Charging Time | Approx. 1 hour |
| Suggested Charging Temperature | 5 deg to 40 deg C (41 deg to 104 deg F) |
| Mechanical and Electrical Properties | |
| Operating Frequency | 2.4000-2.4835 GHz |
| Bluetooth Transmitter Power | Less than 8 dBm |
| Operating Temperature | -20 deg to 45 deg C (-4 deg to 113 deg F) |
| Weight | |
| Gimbal | Approx. 1193 g (2.63 lbs) including Upper and Lower Quick-Release Plates and screws |
| Grip | Approx. 274 g (0.6 lbs) |
| Quick-Open Tripod | Approx. 149 g (0.3 lbs) |
| Upper and Lower Quick-Release Plates | Approx. 93 g (0.21 lbs) including screws |
| Dimensions | |
| Folded | 247.4 x 115.7 x 258.7 mm (L x W x H, excluding camera, grip, and Quick-Open Tripod) |
| Unfolded | 223.2 x 192.2 x 418.8 mm (L x W x H, including grip, excluding camera and Quick-Open Tripod) |
| Peripheral Ports | |
| Accessory Port | Ronin Series Accessories (RSA)/NATO Ports |
| Mounting Options | 1/4 inch-20 Mounting Hole, Cold Shoe |
| Camera Control Port | USB-C |
| Multifunctional Port | USB-C |
| Connections | |
| Wireless | Bluetooth 5.0 |
| Charging Port | USB-C |
| Ronin App Requirements | |
| iOS | 14.0 or above |
| Android | 9.0 or above |
| In The Box | |

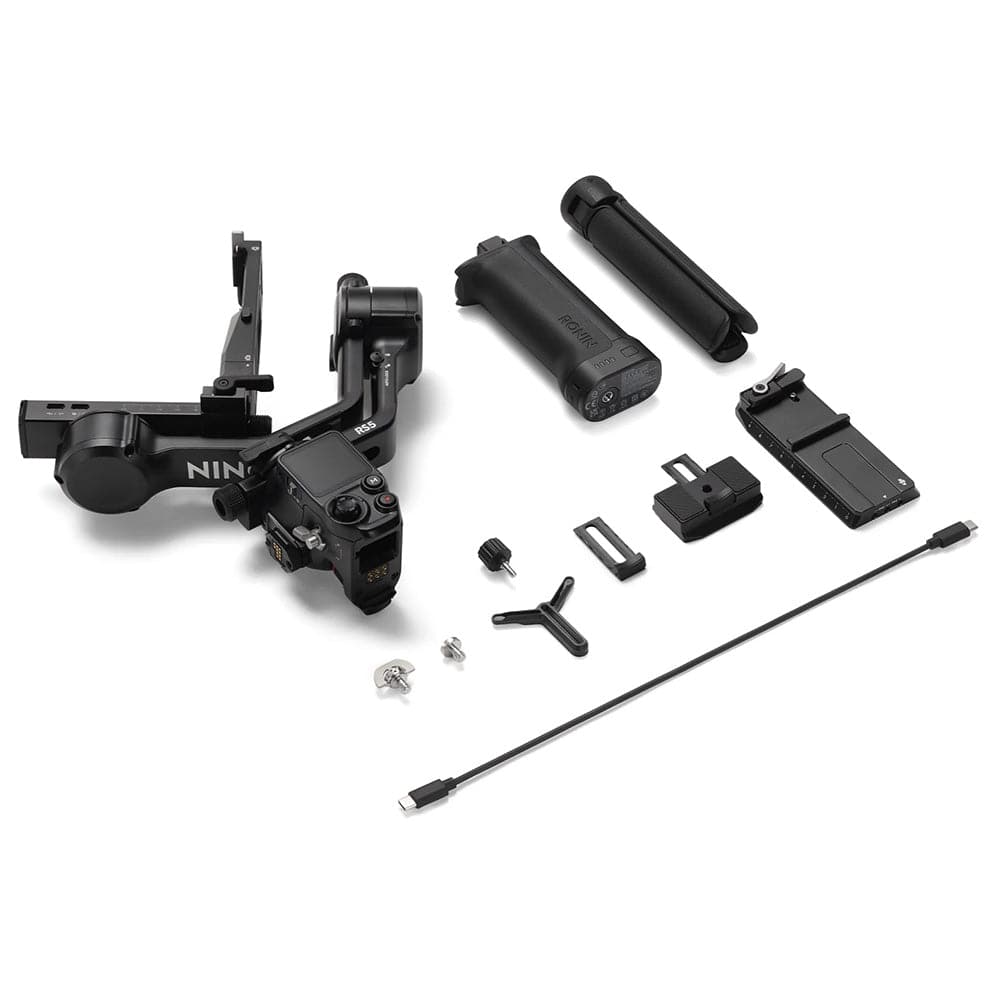

| Gimbal x 1, Quick-Open Tripod x 1, Lens-Fastening Support x 1, USB-C to USB-C PD Cable (USB 3.1) x 1, RS 5 Upper Quick-Release Plate x 1, RS 5 Lower Quick-Release Plate x 1, BG33 Battery Grip x 1, Multi-Camera Control Cable (USB-C, 30 cm) x 1, DJI Logo Sticker x 1 | |
- 3-axis handheld gimbal stabiliser with 3.0 kg tested payload capacity
- 360 deg continuous pan rotation with expansive tilt and roll range
- 2150 mAh LiPo battery with up to 14 hours standby and 1 hour fast charging
- Bluetooth 5.0 connectivity with DJI Ronin App support for iOS and Android
- Compact folded design with auto axis lock for easy portability
- Includes BG33 Battery Grip, Quick-Open Tripod, and Quick-Release Plates
